You find rebar in concrete without breaking into the slab by using non-destructive scanning, and there are two main tools for the job: an electromagnetic cover meter, sometimes called a rebar locator, and ground penetrating radar. A cover meter detects ferrous reinforcement close to the surface, measures the concrete cover over each bar accurately and can estimate bar diameter, which makes it the tool of choice for confirming cover and spacing. Ground penetrating radar reaches deeper, maps the layout of the reinforcement across an element, gives an estimated depth to each bar and, unlike a cover meter, also picks up non-ferrous items such as plastic conduits and post-tension ducts. On a real job the two are often used together: radar to build the overall picture and locate everything, and a cover meter or ferro scan to confirm cover and bar size where it matters. Both work from a single face, are non-ionising and let you mark the bars directly on the surface so you know where it is safe to drill or core.
Striking a reinforcing bar when drilling can weaken the structure, damage the bar and cost you time, so locating the steel first is standard practice before any penetration. This guide explains how each method works, what it can and cannot tell you, and how to use them to drill safely.
Why locate rebar at all

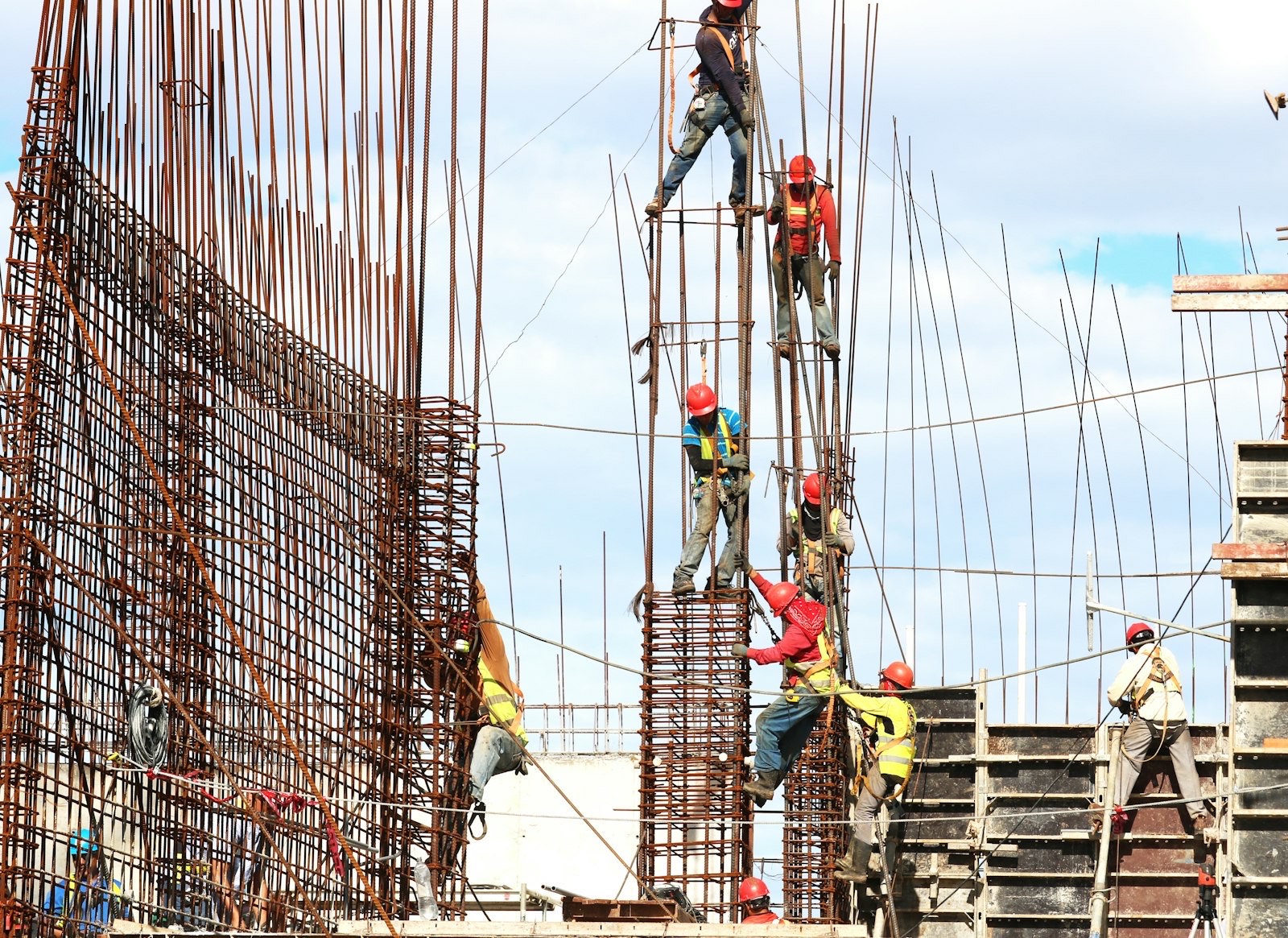

Reinforcement carries the tensile forces in a concrete element, so cutting through a bar during drilling or coring reduces the structural capacity the design relies on and can trigger corrosion where the steel is exposed. Hitting a post-tension tendon is worse still, because the cable is under tension and cutting it can be dangerous as well as expensive. Locating and marking the steel before you start lets you place fixings and cores in the clear zones between bars, or move a position slightly to avoid a strike altogether. It also tells you the cover over the reinforcement, which a structural engineer may need for an assessment of the slab.
Cover meters and rebar locators
An electromagnetic cover meter works by inducing a magnetic field and reading how the ferrous reinforcement disturbs it. The closer and larger the bar, the stronger the response, and from that the instrument reports the depth of cover over the bar and, within limits, an estimate of its diameter.
This makes the cover meter the right tool when your question is specifically about cover and bar size: confirming that the reinforcement sits at the specified depth, checking spacing, or gathering data for a structural or durability assessment. Its limitations follow from the same physics. It only detects ferrous metal, so it will not see a plastic conduit or a non-metallic duct, and its useful range is the near-surface zone, so it is less suited to deep or heavily layered reinforcement. Where you need cover confirmed precisely, though, it is more direct than radar.
Ground penetrating radar
Ground penetrating radar sends short pulses of radio-frequency energy into the concrete and reads the signals that reflect back from bars, interfaces and embedded objects. The operator moves the antenna across the surface, and the reflections combine into a picture of the reinforcement layout and other features.
Radar’s strengths are reach and breadth. It maps the position and spacing of bars across an element, estimates the depth to each, and, crucially, detects things a cover meter cannot, including plastic conduits, service ducts and post-tension cables. Because it only needs access to one face, it works on slabs-on-grade and elevated decks alike, and being non-ionising it can be used in occupied buildings without exclusion zones. Its limitation is that it shows where reflections occur rather than naming them, so distinguishing a reinforcing bar from a conduit or a tendon depends on skilled interpretation and, where needed, combining radar with electromagnetic detection.
Which method for which question
| Your question | Best tool | Why |
|---|---|---|
| What is the cover over the bars? | Cover meter or ferro scan | Reads cover accurately and estimates bar diameter |
| Where are all the bars before I core? | GPR | Maps layout and spacing across the element from one face |
| Is there a conduit or post-tension cable? | GPR | Detects non-ferrous items a cover meter cannot see |
| Confirming bar size for an assessment | Cover meter or ferro scan | Estimates diameter where the cover meter response allows |
| Deep or heavily layered reinforcement | GPR | Reaches beyond the near-surface range of a cover meter |
In practice a competent surveyor combines the two. Radar locates everything and builds the overall map, and a cover meter or ferro scan confirms cover and bar size where that detail is needed. Combining methods is also how reinforcement is distinguished from services with confidence, which matters most around each proposed drill or core position.
How the bars get marked before drilling
The core deliverable for most drilling and cutting work is a set of markings applied directly to the concrete surface. The surveyor scans around each proposed position, interprets the data, and marks the reinforcement and any detected services, then identifies the clear zones where it is safe to penetrate. That on-site markup is usually all a coring crew needs to proceed. Where a permanent record is wanted, annotated scan drawings capture the detected bars, estimated depths and cover, and the safe penetration points, so the information can be shared across the team.
Common questions
How do you find rebar in concrete without breaking it?
You use non-destructive scanning. An electromagnetic cover meter detects ferrous bars near the surface and measures cover, while ground penetrating radar maps the reinforcement layout deeper into the element and also detects non-ferrous items. Both work from one face and let the surveyor mark the bars directly on the surface, so you can drill or core in the clear zones without cutting through steel.
What is the difference between a cover meter and GPR for rebar?
A cover meter detects only ferrous reinforcement, but it measures concrete cover accurately and estimates bar diameter, which makes it ideal for confirming cover and spacing near the surface. GPR reaches deeper, maps the whole layout, estimates depth to each bar and detects non-ferrous items such as conduits and post-tension cables, but it relies on skilled interpretation to identify what each reflection is. The two are often used together.
Can rebar scanning find post-tension cables too?
Ground penetrating radar can detect post-tension cables and tendons as well as conventional reinforcement, which is why radar is used before coring or drilling where PT is present. A cover meter alone will not reliably distinguish a tendon, so radar, with careful interpretation, is the method for locating post-tension cables before you penetrate a slab.
Is it safe to scan for rebar in an occupied building?
Yes. Both cover meters and GPR are non-ionising and emit very low power, so there is no radiation risk to operators, workers or occupants and no need to clear the area. This is a key advantage over X-ray methods, which require exclusion zones and access to both faces of the element, and it means rebar scanning can be carried out on live and occupied sites.
